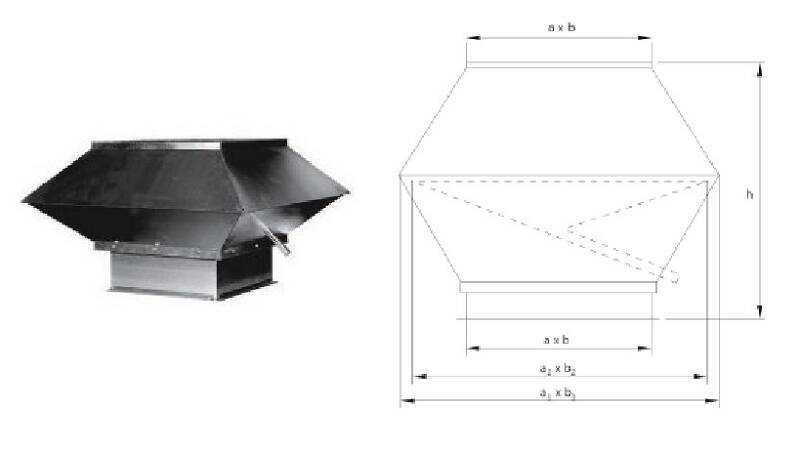

Wyrzutnia dachowa prostokątna kWPE
- rodzaj blachy: blacha ocynkowana, blacha kwasoodporna
- wlot powietrza zakończony stalową siatką
- różne zakończenia (obrzeża)
ZAKRES WYMIAROWY
| Wymiary (mm) | a1 (mm) | b1 (mm) | a2 (mm) | b2 (mm) | h (mm) | Masa (kg) | |
|---|---|---|---|---|---|---|---|
| a | b | ||||||
| 250 | 250 | 375 | 375 | 275 | 275 | 525 | 9,75 |
| 250 | 400 | 375 | 600 | 275 | 440 | 690 | 16,62 |
| 250 | 630 | 375 | 945 | 275 | 693 | 943 | 30,12 |
| 315 | 315 | 473 | 473 | 347 | 347 | 597 | 13,91 |
| 400 | 400 | 600 | 600 | 440 | 440 | 690 | 21,45 |
| 400 | 630 | 600 | 945 | 440 | 693 | 943 | 35,59 |
| 500 | 500 | 750 | 750 | 550 | 550 | 800 | 31,36 |
| 630 | 630 | 945 | 945 | 693 | 693 | 943 | 47,00 |
| 630 | 1000 | 945 | 1500 | 693 | 1100 | 1350 | 84,12 |
| 630 | 1600 | 945 | 2400 | 693 | 1760 | 2010 | 158,49 |
| 800 | 800 | 1200 | 1200 | 880 | 880 | 1130 | 75,72 |
| 1000 | 1000 | 1500 | 1500 | 1100 | 1100 | 1350 | 110,65 |
| 1000 | 1600 | 1500 | 2400 | 1100 | 1760 | 2010 | 187,99 |
| 1200 | 1200 | 1800 | 1800 | 1320 | 1320 | 1570 | 158,23 |
